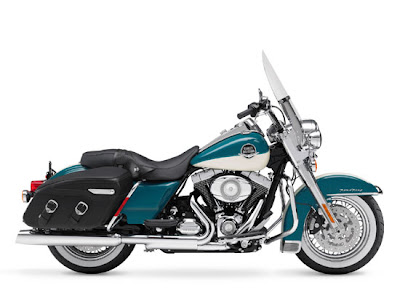

Harley-Davidson FLHRC Road King Classic, 2009

Harley-Davidson FLHRC Road King Classic, 2009
USA Specifications
MSRP starting at $ 17,999





Dimensions
Length 94.22 in. (2393.19 mm)
Overall Width 37.50 in. (952.50 mm)
Overall Height 55.10 in. (1399.54 mm)

Seat Height:
• Laden2: 26.90 in. (683.26 mm)
• Unladen: 29.50 in. (749.30 mm)

Ground Clearance 5.10 in. (129.54 mm)
Rake (steering head) 26°
Fork Angle 29.25°
Trail 6.69 in. (169.93 mm)
Wheelbase 63.54 in. (1613.92 mm)

Tires (Dunlop Harley-Davidson Series, bias wide whitewall):
• Front – D407F WWW 130/90B16 67H
• Rear – D407 WWW 180/65B16 81H

Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 4 qts. (3.79 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain
Case Capacity11 1.40 qts. (1.32 L)

Weight:
• As Shipped 773 lbs. (350.63 kg)
• In Running Order 810 lbs. (367.41 kg)
• Gross Vehicle Weight Rating 1360 lbs. (616.89 kg)
• Gross Axle Weight Rating
• Front 500 lbs. (226.80 kg)
• Rear 927 lbs. (420.48 kg)

Engine
Engine3 Air-cooled, Twin Cam 96
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System9 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch 9-plate, wet
Transmission 6-Speed Cruise Drive
Gear Ratios (overall): U.S. HDI JPN
• 1st 9.593 9.593 9.593
• 2nd 6.650 6.650 6.650
• 3rd 4.938 4.938 4.938
• 4th 4.000 4.000 4.000
• 5th 3.407 3.407 3.407
• 6th 2.875 2.875 2.875

Chassis

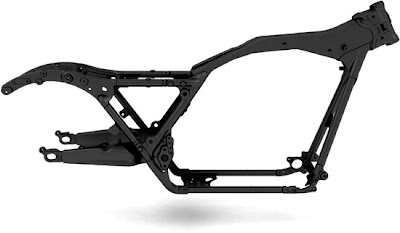

Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.30 mm telescopic
Rear Shocks Air-adjustable

Wheels4 (Chrome, Profile Laced Aluminum option): Chrome, Laced Steel
• Front 16 in. x 3 in. (406.40 mm x 76.20 mm)
• Rear 16 in. x 5 in. (406.40 mm x 127 mm)

Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type Patented, fixed rotors
(diameter x width):
• Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm)
• Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm)
• Anti-Lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4.60 in. (116.84 mm)
• Rear Wheel 3 in. (76.20 mm)
Engineered for Sidecar Use Available

Performance
Engine Torque5 (per SAE J1349):
• North America 92.60 ft. lbs. @ 3500 rpm (125.57 NM @ 3500 rpm)
• World 90.20 ft. lbs. @ 3400 rpm (122.31 NM @ 3400 rpm)
• France opt. Germany 90.20 ft. lbs. @ 3400 rpm (122.31 NM @ 3400 rpm)
• Japan 86.90 ft. lbs. @ 2500 rpm (117.84 NM @ 2500 rpm)

Lean Angle (per SAE J1168):
• Right 33°
• Left 31°

Fuel Economy7
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam;
• Auxiliary Lamps Two @ 35W each (except where prohibited by law)
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps: High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system9 (optional), 6-speed, low fuel warnings, cruise control, ABS (optional)

Warranty
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication.
Though such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature
6-speed transmission (VRSC models and Sportster models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
7 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
8 See motorcycle owner’s manual for complete details.
9 Standard and optional fuel systems may vary by country and region.
10 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
11 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm spring.
